Centrifugal Fan

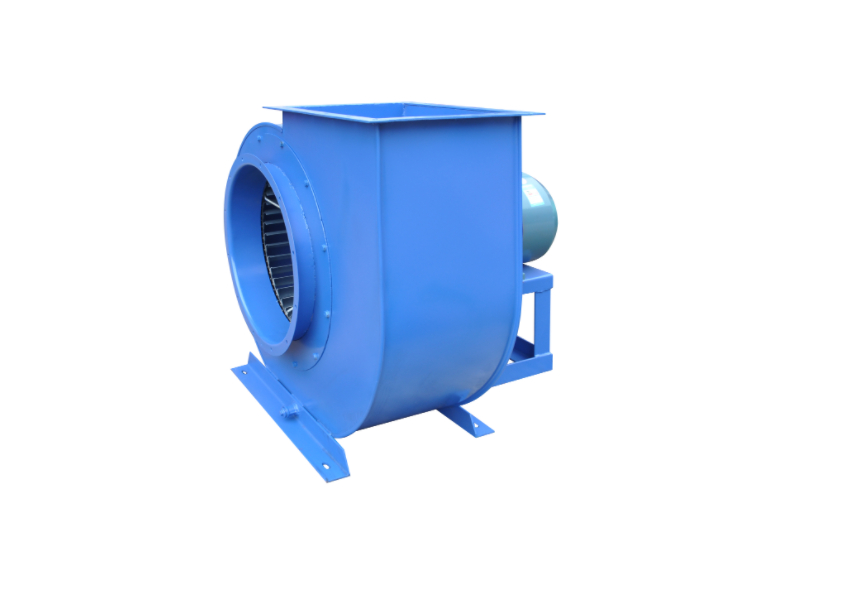

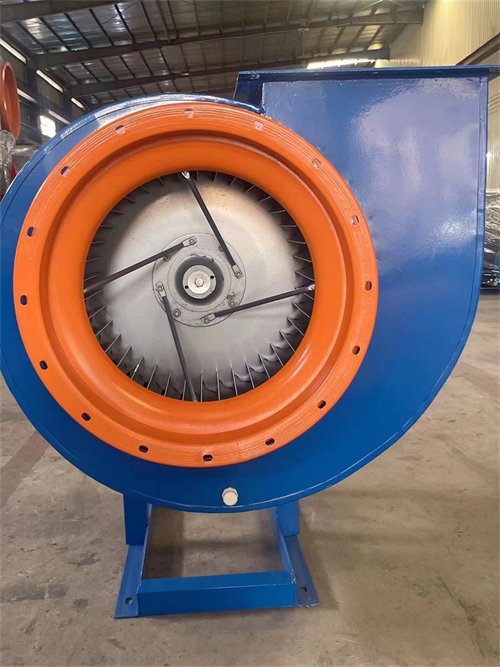

11-62 A/E type centrifugal fan

Model: 11-62 type centrifugal fan
Feature:

1.high efficiency

2.low noise

3.low rotation

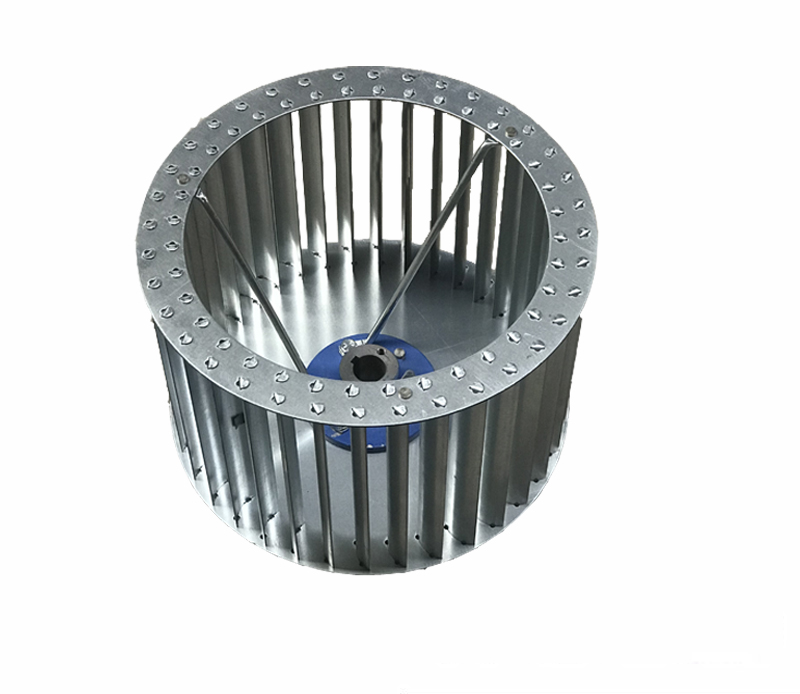

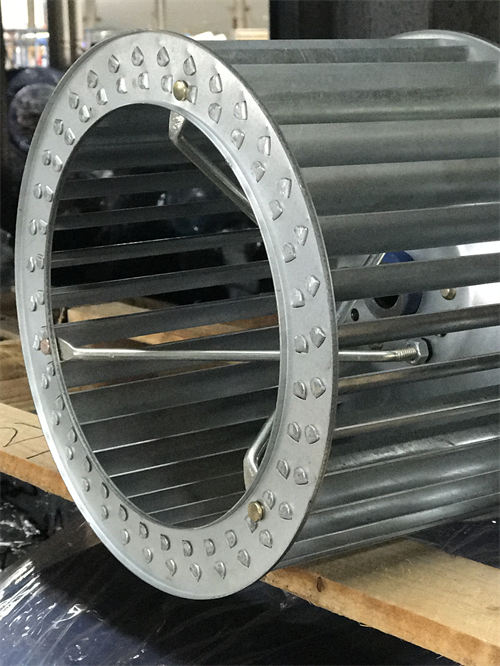

4.advanced impeller structure

5.little vibration

6.easy operation

Contact Us

Featured by high efficiency,low rotation,low noise,this type of centrifugal fan has advanced impeller structure, scroll case of log spiral, exquisite design, little vibration,easy operation. It is suitable for ventilation and oil-air expiration of the restaurant, kitchen and air-condition systems, and the ventilation of mineral factory.The transporting medium is air or other non-spontaneous-combustion and non-explosive-combustion air with no harm to human. The air transferred shall not contain any adhesive material,dust and grain and the concentration shall not exceed 150mg/m3,with the temperature no higher than 80℃.








Product function:  oil-air expiration,ventilation

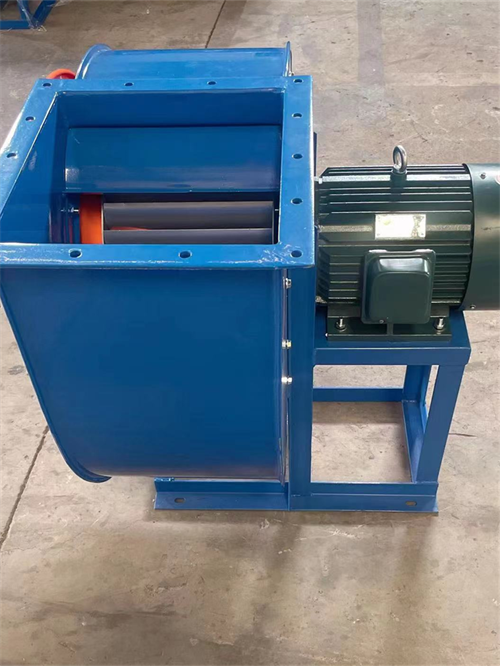

11-62 A type centrifugal fan

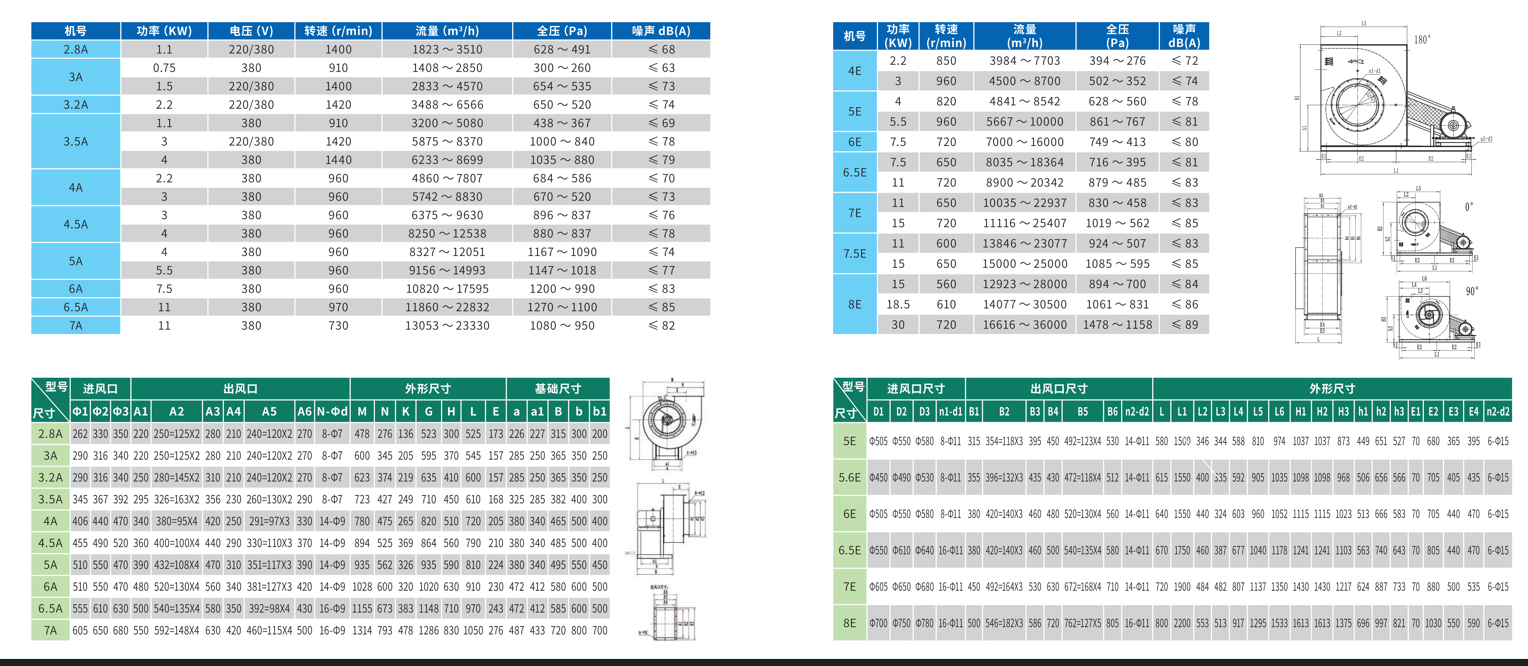

Model (KW) (V) (r/min) (m³/h) (Pa )
2.65A 0.55 220 1400 1215~2413 428~368
0.55 220 1400 1215~2413 428~368
2.8A 0.75 220 1400 1370~2760 480~345
0.75 380 1400 1370~2760 480~345
3A 0.75 380 910 1408~2850 300~260
1.5 220 1420 2150~4270 654~535
1.5 380 1420 2150~4270 654~535
3.2A 2.2 220 1420 2200~4400 650~520
2.2 380 1420 2200~4400 650~520
3.5A 1.1 380 910 3200~5080 438~367
3 220 1420 5075~8065 1000~840
3 380 1420 5075~8065 1000~840
2.2 220 1420 2365~5613 702~767
2.2 380 1420 2365~5613 702~767
4A 2.2 380 960 4860~7807 684~586
3 380 960 5742~8830 670~520
4.5A 3 380 960 6175~9220 896~837
4 380 960 7342~11120 880~837
5A 4 380 960 8127~10051 1167~1090
5.5 380 960 8857~13021 1147~1018
6A 7.5 380 960 9820~16894 1200~990
6.5A 11 380 970 10800~21000 1270~1100
7A 11 380 730 12053~21330 1080~950

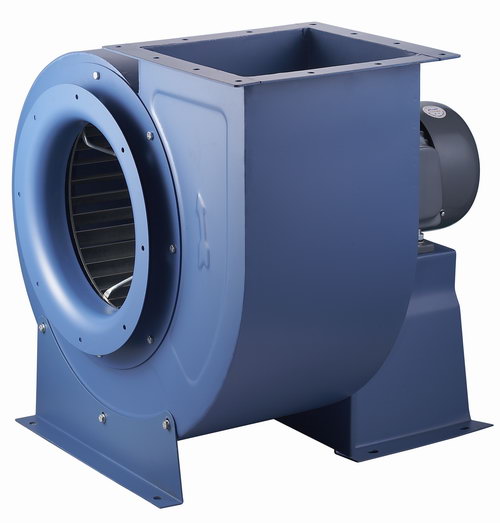

11-62 E type centrifugal fan
Model (KW) (V) (r/min) (m³/h) (Pa )
3E 1.5 380 1420 1959~4162 469~584
3.5E 1.1 380 960 2648~4303 353~265
3 380 1420 3917~6365 772~582
4E 2.2 380 850 3984~7703 394~276
3 380 960 4500~8700 502~352
5E 4 380 820 4841~8542 628~560
5.5 380 960 5667~10000 861~767
6E 7.5 380 720 7000~16000 749~413
6.5E 7.5 380 650 8035~18364 716~395
11 380 720 8900~20342 879~485
7E 11 380 650 10035~22937 830~458
15 380 720 11116~25407 1019~562
7.5E 11 380 600 13846~23077 924~507
15 380 650 15000~25000 1085~595
8E 15 380 560 12923~28000 894~700
18.5 380 610 14077~30500 1061~831
30 380 720 16616~36000 1478~1158

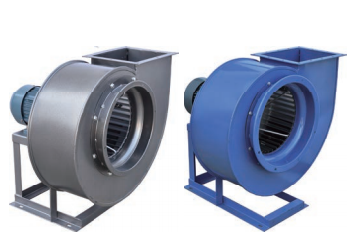

MATERIAL:CARBON STEEL, ALUMINUM,GALVANIZED SHEET, STAINLESS STEEL #304 #414, COPPER

It is suitable for ventilation and oil-air expiration of the restaurant, kitchen and air-condition systems, and the ventilation of mineral factory.

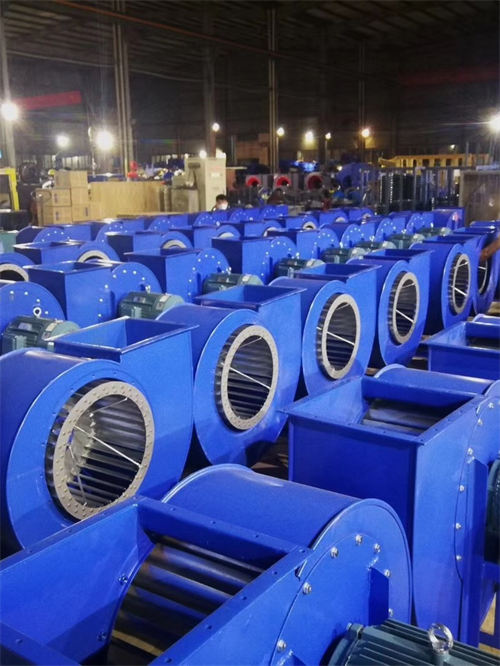

① Production process

BLANKING, LASER BLANKING, ASSEMBLY, WELDING, FINAL ASSEMBLY, TESTING



② Package & Shipping

Small size products - carton/wooden frame packaging, large size products are packaged with stretch film



③ After-sales Service

One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.



④ FAQ

Q1. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please use Whatsapp or email to contact us and we will reply you in time .



Q2. What is your main market?

Europe, Asia, America,Africa.



Q3:Is your company a manufacturing or trading company? Can we make our own brand?

We are a professional manufacturer of poultry equipment, industrial ventilation and cooling equipment in China. We can provide OEM and ODM services, can do your brand on the product



Q4:What's your starting amount?

A:We can make sample orders, but the shipping cost will be very high .



Q5. Can I buy 1 or 2 pieces of samples for testing before bulk order?

Yes, of course. we are pleasure to supply the samples for the quality and performance. test. We are full of confidence that you will be satisfied once you get it. Meanwhile, we will take the sample charge from you, but we will return the sample charge back to you when you place the bulk order.



Q6:What is your delivery time?

A:According to the order quantity, if we have stock it is only 3 business days, if we do not have, it is about 7-15 business days.



Q7:How about the quality of your products

A:All products are produced in strict accordance with international standards, and through the QS certification, 3C certification of international quality management system



Q8. What if I haven’t done the import before, how can I buy the product from you?

You only need to pick up the items you need. We have the cooperated shipping agent to help you to do the shipping and custom clearance, and then the goods could be delivered to your warehouse directly. You don’t need to do anything.



Q9:How to make business:

A:PAYMENT TERMS: T/T, 30% deposit before production, 70% balance before shipment

TRADE TERMS:NORMALLY OUR TRADING TERMINGIS FOB FOSHAN/SH

LEADING TIME:IF WE HAVE STOCK IT IS ONLY 3 BUSINESS DAYSIF WE DO NOT HAVE, IT IS ABOUT 7-15 BUSINESS DAYS.

OEM/ODM:OUR PROFESSIONAL TEAM WOULD LIKE TOJOIN IN DEVELOPMENT PROGRESS



Q10. What is the after-sale service proposal?

One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.
