Centrifugal Fan

HCF backward single-plate kitchen lampblack exhauster

Model: HCF series
Feature:

1.low noise

2. large air volume

3. good performance

4. easy maintenance



Contact Us

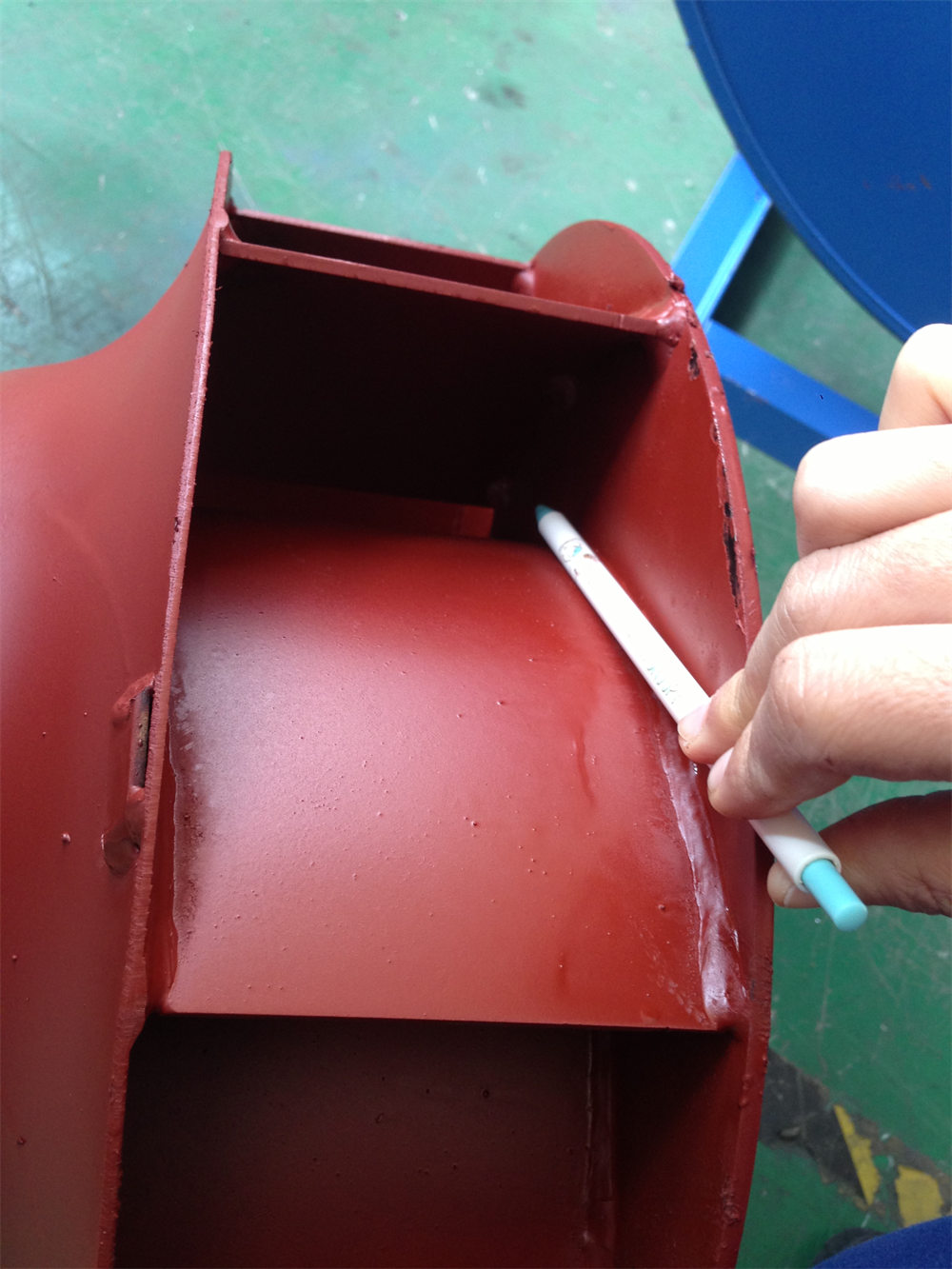

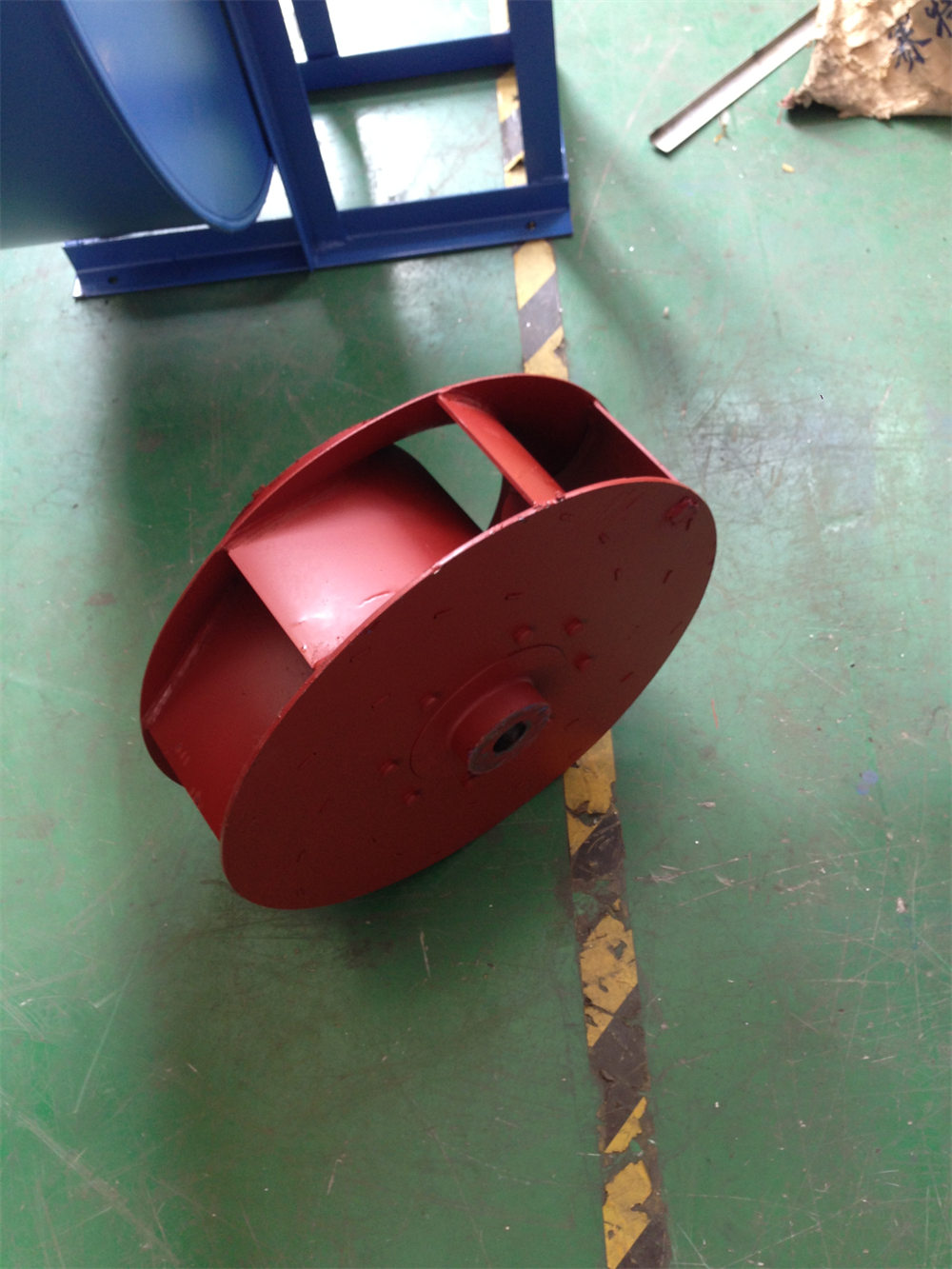

Impeller: Backward single-plate impeller.

Convenient for clean.

Noise:10%lower than similar fans.

Suitable Air: Non-hypergolic, non-corrosive, dustiness<120mg/m-20C<air temperature<85°C.

Application: Suitable for kitchen lampblack exhausting and using with smoke purifier.

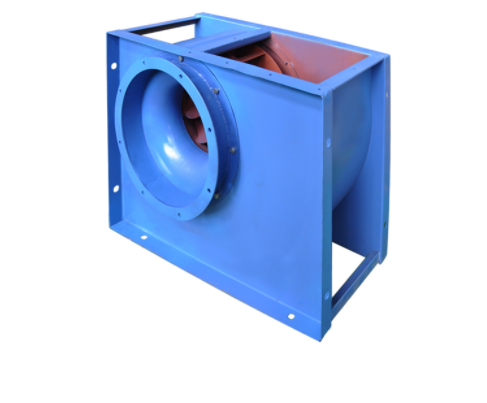

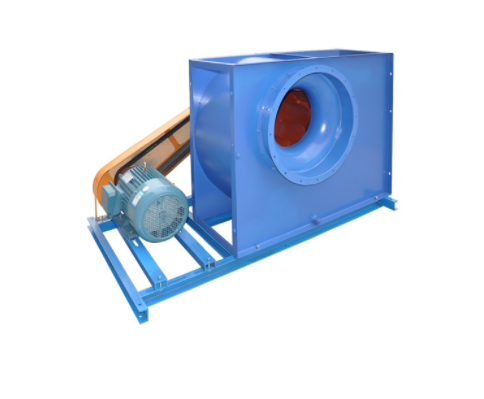

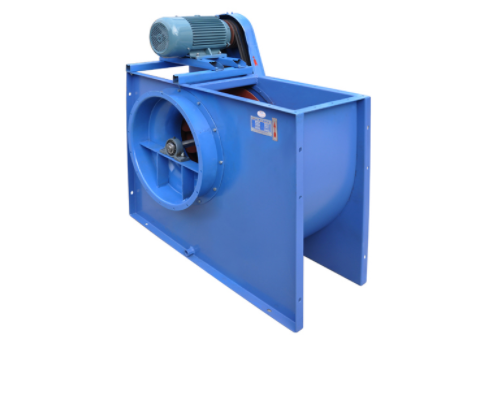

HCF backward single-plate kitchen lampblack exhauster
Model  (KW) ( V ) (r/min) (m³/h) (Pa ) (Pa )
3.6A 0.75 220 1450 1876~3088 405~201 385~145
0.75 380 1450 1876~3088 405~201 385~145
2.2 380 2900 3752~6175 1620~805 1540~581
4.0A 1.1 220 1450 2330~4378 509~295 492~249
1.1 380 1450 2330~4378 509~295 492~249
4 380 2900 4660~8756 2035~1178 1969~997
4.5A 1.1 220 1450 3070~6100 675~392 650~307
1.1 380 1450 3070~6100 675~392 650~307
5.5 380 2900 6138~12200 2700~1565 2605~1229
5.0A 2.2 220 1450 4763~9064 818~473 782~376
2.2 380 1450 4763~9064 818~473 782~376
11 380 2900 9525~18128 3272~1891 3130~1505
5.6A 2.2 220 1450 5235~11621 1076~540 1047~495
2.2 380 1450 5235~11621 1076~540 1047~495
18.5 380 2900 10470~23241 4301~2159 4188~1980
6.0A 1.5 380 960 5207~9642 520~306 468~177
3 380 1450 7864~14293 1187~699 1069~403
7.0A 1.1 380 720 6877~11288 398~221 386~177
2.2 380 960 9169~15051 708~329 687~258
7.5 380 1450 13845~22734 1616~750 1567~650
8.0A 2.2 380 720 10432~17665 564~245 502~179
5.5 380 960 13909~23552 1002~436 502~179
15 380 1450 21003~35564 2286~995 2030~720



Model  (KW) ( V ) (r/min) (m³/h) (Pa ) (Pa )
4.0
C/E式
4 380 2600 4178~7594 1865~943 1586~752
3 380 2400 3856~7010 1589~803 1351~641
2.2 380 2000 3213~51029 1103~558 938~446
1.5 380 1800 2892~5258 893~452 760~360
1.1 380 1600 2571~4673 706~357 600~284
4.5
C/E式
4 380 2600 5949~10812 2147~1011 2082~730
3 380 2400 5401~9980 1829~861 1774~622
2.2 380 2200 5033~9149 1536~723 1491~346
1.5 380 1800 4118~7486 1244~586 1208~280
1.1 380 1600 3660~6654 982~463 954~221
5.0
C/E式
7.5 380 2600 8160~14931 2512~1248 2388~901
5.5 380 2400 7532~13689 2140~1063 2035~767
4 380 2000 6276~11407 1486~738 1413~532
3 380 1800 5648~9126 1204~598 1144~431
2.2 380 1600 5020~8112 951~472 904~340
1.5 380 1430 4487~7250 852~422 722~272
5.6
C/E式
11 380 2400 10583~19234 2685~1334 2552~963
7.5 380 2200 9693~17618 2253~1122 1632~807
5.5 380 2000 8812~16017 1862~927 1349~667
4 380 1800 7931~14415 1508~751 1430~540
3 380 1600 7050~12813 1192~593 1130~427
2.2 380 1400 6174~11220 913~454 865~327
6.0
C/E式
15 380 2400 11295~23337 3179~1626 3079~1314
11 380 2200 10362~21410 2672~1366 2588~1104
7.5 380 2000 9462~19464 2208~1129 2139~912
5.5 380 1800 8516~17518 1789~915 1733~739
4 380 1600 7570~15572 1414~723 1370~584
3 380 1300 6155~12660 934~477 905~386
7.0
C/E式
18.5 380 2000 16631~30225 2715~1348 2581~784
15 380 1800 14968~27205 2199~1092 2091~635
11 380 1650 13721~24938 1848~917 1757~534
7.5 380 1450 12057~21914 1427~709 1357~512
5.5 380 1280 10646~19346 1112~652 1057~399
4 380 1120 9315~16927 852~432 810~306
3 380 1000 8318~15116 679~337 705~266
8.0
C/E式
18.5 380 1600 20561~37370 2569~1138 2481~966
15 380 1450 18641~33880 2110~935 2046~810
11 380 1300 16702~30356 1694~751 1643~650
7.5 380 1200 16416~28019 1443~640 1400~654
5.5 380 1100 14121~25665 1212~538 1176~466
4 380 960 12314~22380 922~409 895~355
9.0
C/E式
30 380 1600 31194~51494 3180~1485 3086~1307
22 380 1450 28262~46666 2618~1220 2534~1074
18.5 380 1320 25728~42482 2170~1011 2100~890
15 380 1250 24363~40229 1946~907 1883~798
11 380 1120 21830~36126 1562~728 1512~641
7.5 380 960 18711~30965 1148~535 1111~470
5.5 380 800 15592~25803 797~372 772~326





MATERIAL:CARBON STEEL, ALUMINUM,GALVANIZED SHEET, STAINLESS STEEL 304# 414#, COPPER

It is widely used for ventilation in warehouses, workshops and entertainment places.



① Production process

BLANKING, LASER BLANKING, ASSEMBLY, WELDING, FINAL ASSEMBLY, TESTING



② Package & Shipping

Small size products - carton/wooden frame packaging, large size products are packaged with stretch film





③ After-sales Service

One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.



④ FAQ

Q1. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please use Whatsapp or email to contact us and we will reply you in time .



Q2. What is your main market?

Europe, Asia, America,Africa



Q3:Is your company a manufacturing or trading company? Can we make our own brand?

 A:We are a professional manufacturer of poultry equipment, industrial ventilation and cooling equipment in China.  We have a professional team having rich experience in design and manufacturing.We can provide OEM and ODM services, can do your brand on the product



Q4:What's your starting amount?

A:We can make sample orders, but the shipping cost will be very high



Q5.Can I buy 1 or 2 pieces of samples for testing before bulk order?

A: Yes, of course. we are pleasure to supply the samples for the quality and performance. test. We are full of confidence that you will be satisfied once you get it. Meanwhile, we will take the sample charge from you, but we will return the sample charge back to you when you place the bulk order.



Q6:What is your delivery time?

A:.According to the order quantity, if we have stock it is only 3 business days, if we do not have, it is about 7-15 business days.



Q7:How about the quality of your products

A:All products are produced in strict accordance with international standards, and through the QS certification, 3C certification of international quality management system



Q8. What if I haven’t done the import before, how can I buy the product from you?

A:You only need to pick up the items you need. We have the cooperated shipping agent to help you to do the shipping and custom clearance, and then the goods could be delivered to your warehouse directly. You don’t need to do anything.



Q9:How to make business:

A:

PAYMENT TERMS: T/T, 30% deposit before production, 70% balance before shipment

TRADE TERMS:NORMALLY OUR TRADING TERMINGIS FOB FOSHAN/SH

LEADING TIME:IF WE HAVE STOCK IT IS ONLY 3 BUSINESS DAYSIF WE DO NOT HAVE, IT IS ABOUT 7-15 BUSINESS DAYS.

OEM/ODM:OUR PROFESSIONAL TEAM WOULD LIKE TOJOIN IN DEVELOPMENT PROGRESS



Q10. What is the after-sale service proposal?

One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.
