Industrial Fan

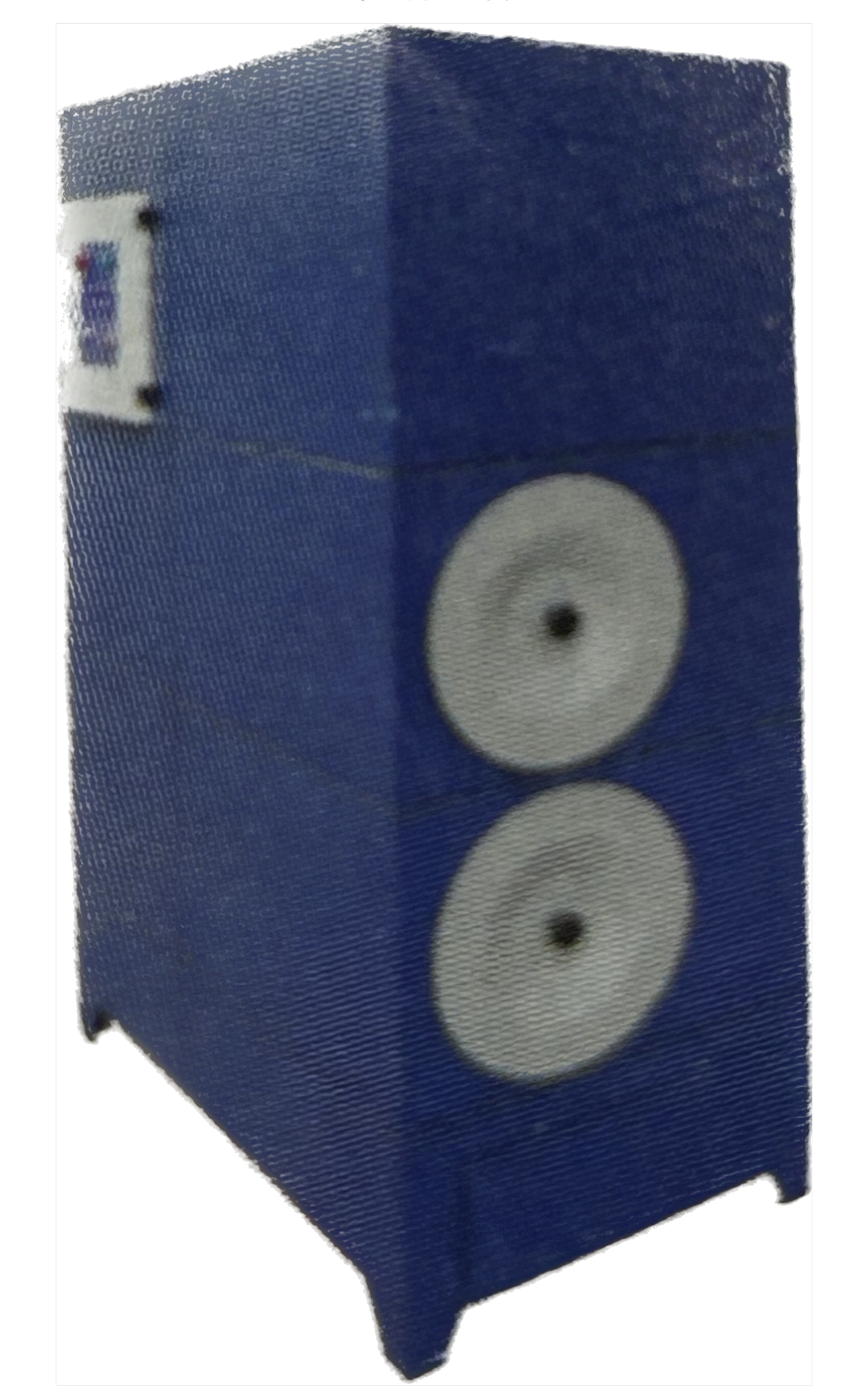

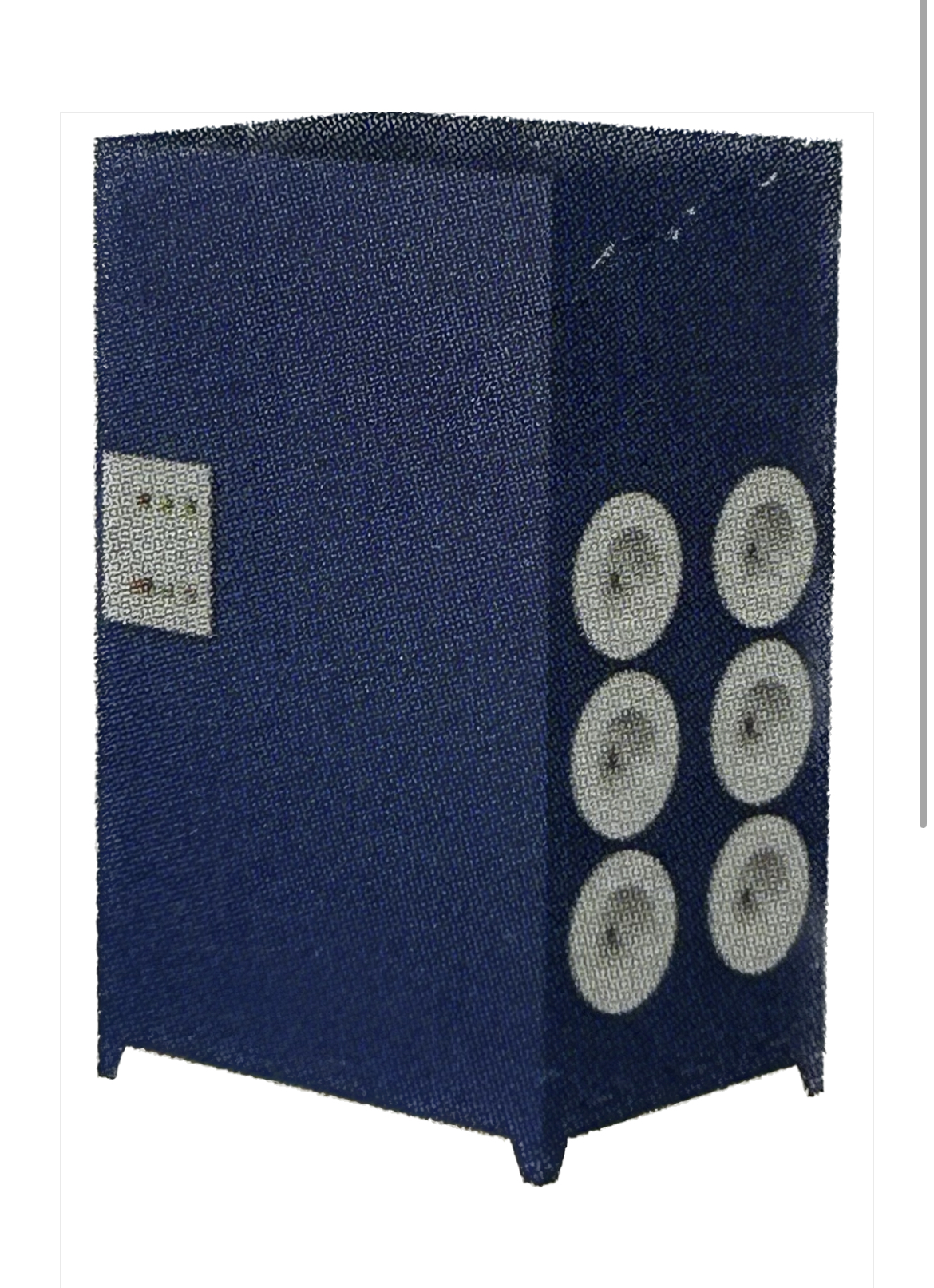

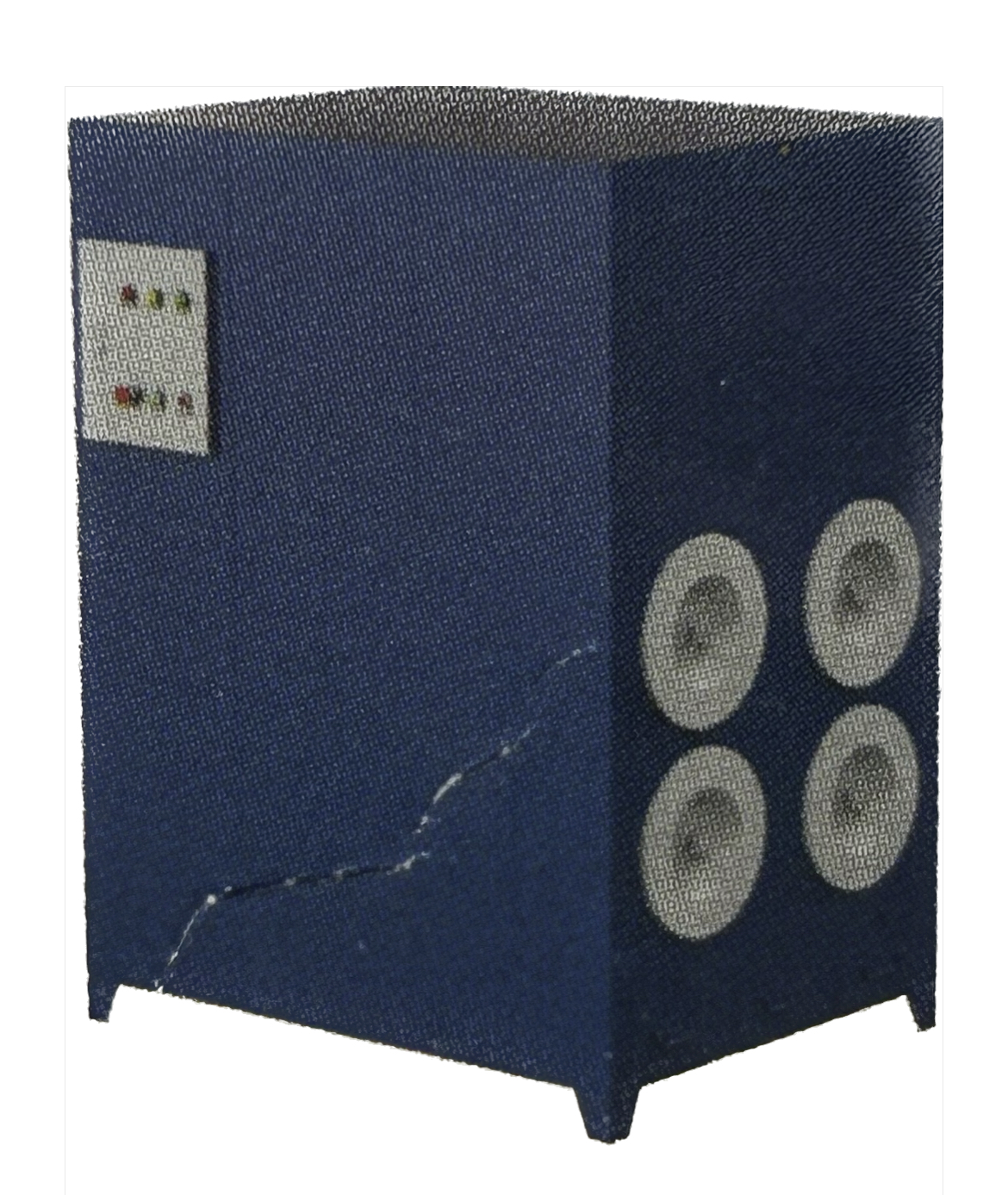

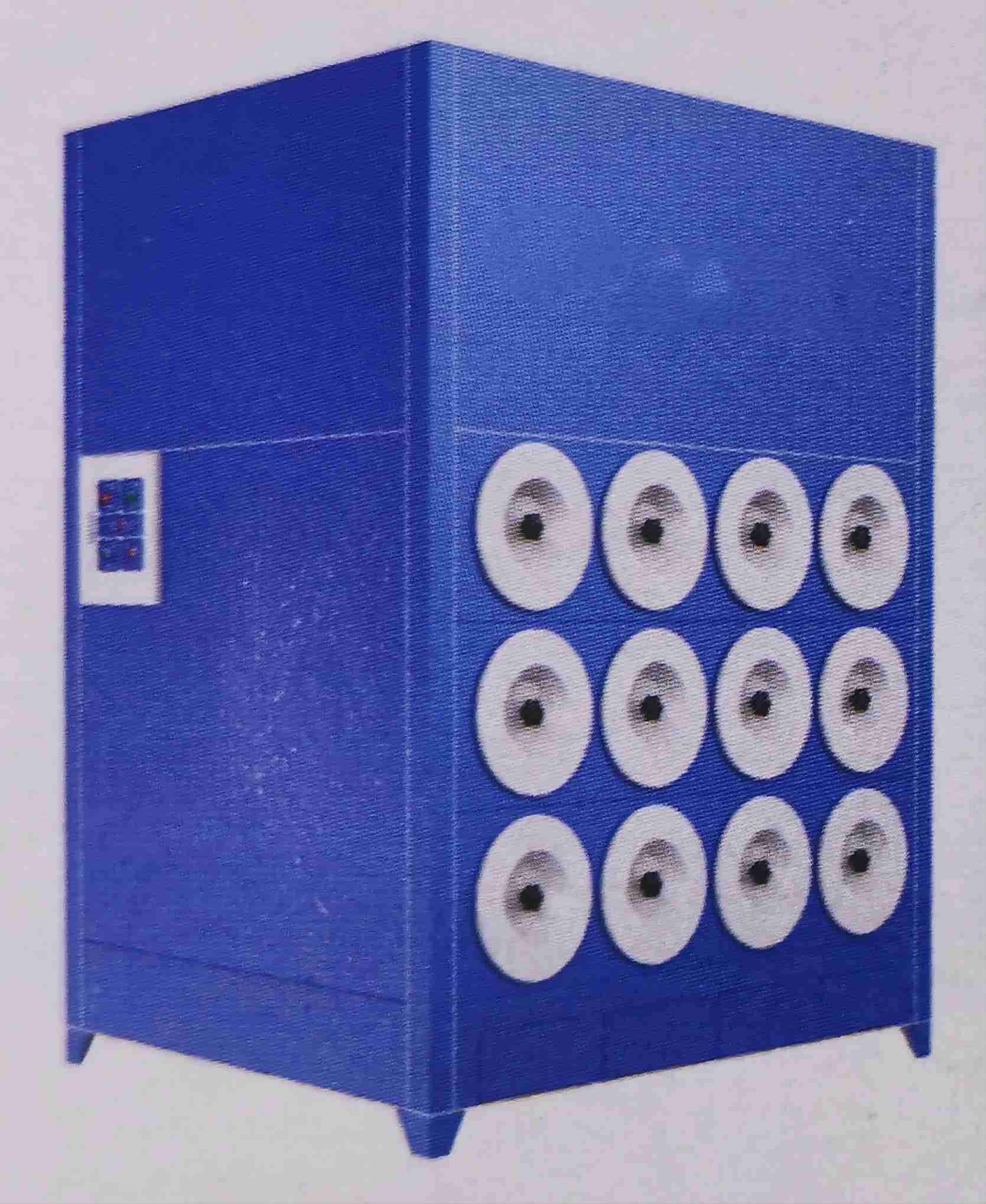

YMC Dust Collector

Model: YMC Dust Collector
Feature:
  1. Dust elimination
  2. Ventilation
  3. High efficient
  4. High pressure
Contact Us

YMC Dust Collector is widely used in all walks of life as a collection equipment of dust and particles. lt has high filtrationefficiency and continuous working ability both for the treatment of air pollution and far the particles recovery equipment used inthe production line. YMC Dust Collector has a variety of models with diferent specifications according to the size of the airvolume capacity and the different nature of the dust. The filter cartridge adopts high-quality flame-retardant filter material,andthe workingtemperature can reach 120°C.
Filter element is one of the core components of YMC Dust Collector. According to different working environment and dustparticles of different properties, our company specially provides different types of filter elements for you to ensure the filteringefficiency and safety of the dust collector. During operation, the air to be treated by the dust removal fan is firstly started to enterfrom the air inlet ofthe dust collector Through the filter element, the dust particles are blocked on the outer surface of the filterelement. The filtered air enters the clean air chamber and is discharged bythe fan through the air outlet. Dust particles fallon theouter surtace ofthe filter element. which wil increase the air resistance or the filter element and reduce the working eticiency oithe dust collector. Therefore, it is necessary to start the automatic ash cleaning procedure f the filter element seqguentialcirculation. After the start ofthe dust removal program,the microcomputer program controller activates the electron magnetivalve in a fixed time seduence to drive the coresponding enlosive gas diaphragm valve to pen. release the compressed airpulse, blow back the filter element from the inside to the outside, blow the dust off the surface of the filter element and drop itinto the dust retainer, thus ensuring the best working performance of the dust collector.

YMC Dust Collector is widely used in all walks of life as a collection equipment of dust and particles. lt has high filtrationefficiency and continuous working ability both for the treatment of air pollution and far the particles recovery equipment used inthe production line. YMC Dust Collector has a variety of models with diferent specifications according to the size of the airvolume capacity and the different nature of the dust. The filter cartridge adopts high-quality flame-retardant filter material,andthe workingtemperature can reach 120CFilter element is one of the core components of YMC Dust Collector. According to different working environment and dustparticles of different properties, our company specially provides different types of filter elements for you to ensure the filteringefficiency and safety of the dust collector. During operation, the air to be treated by the dust removal fan is firstly started to enterfrom the air inlet ofthe dust collector Through the filter element, the dust particles are blocked on the outer surface of the filterelement. The filtered air enters the clean air chamber and is discharged bythe fan through the air outlet. Dust particles fallon theouter surtace ofthe filter element. which wil increase the air resistance or the filter element and reduce the working eticiency oithe dust collector. Therefore, it is necessary to start the automatic ash cleaning procedure f the filter element seqguentialcirculation. After the start ofthe dust removal program,the microcomputer program controller activates the electron magnetivalve in a fixed time seduence to drive the coresponding enlosive gas diaphragm valve to pen. release the compressed airpulse, blow back the filter element from the inside to the outside, blow the dust off the surface of the filter element and drop itinto the dust retainer, thus ensuring the best working performance of the dust collector.

① Production process

BLANKING, LASER BLANKING, ASSEMBLY, WELDING, FINAL ASSEMBLY, TESTING



② Package & Shipping

Small size products - carton/wooden frame packaging, large size products are packaged with stretch film



③ After-sales Service

One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.



④ FAQ

Q1. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please use Whatsapp or email to contact us and we will reply you in time .



Q2. What is your main market?

Europe, Asia, America,Africa.



Q3:Is your company a manufacturing or trading company? Can we make our own brand?

We are a professional manufacturer of poultry equipment, industrial ventilation and cooling equipment in China. We can provide OEM and ODM services, can do your brand on the product



Q4:What's your starting amount?

A:We can make sample orders, but the shipping cost will be very high .



Q5. Can I buy 1 or 2 pieces of samples for testing before bulk order?

Yes, of course. we are pleasure to supply the samples for the quality and performance. test. We are full of confidence that you will be satisfied once you get it. Meanwhile, we will take the sample charge from you, but we will return the sample charge back to you when you place the bulk order.



Q6:What is your delivery time?

A:According to the order quantity, if we have stock it is only 3 business days, if we do not have, it is about 7-15 business days.



Q7:How about the quality of your products

A:All products are produced in strict accordance with international standards, and through the QS certification, 3C certification of international quality management system



Q8. What if I haven’t done the import before, how can I buy the product from you?

You only need to pick up the items you need. We have the cooperated shipping agent to help you to do the shipping and custom clearance, and then the goods could be delivered to your warehouse directly. You don’t need to do anything.



Q9:How to make business:

A:PAYMENT TERMS: T/T, 30% deposit before production, 70% balance before shipment

TRADE TERMS:NORMALLY OUR TRADING TERMINGIS FOB FOSHAN/SH

LEADING TIME:IF WE HAVE STOCK IT IS ONLY 3 BUSINESS DAYSIF WE DO NOT HAVE, IT IS ABOUT 7-15 BUSINESS DAYS.

OEM/ODM:OUR PROFESSIONAL TEAM WOULD LIKE TOJOIN IN DEVELOPMENT PROGRESS



Q10. What is the after-sale service proposal?

One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.
